Best Quality 3kw 5kw 10kw Residential Solar Home Storage Hybrid Power System for Home
Foxtech Solar specialize in providing more safety and green all in one energy storage system since 2015.
Our hot sell 3KW 5KW residencial ESS has many good features :
* Elegant and safe green solar storage system for home ;
* Long term partner with CATL battery;
* 2.56KW lithium iron battery per pack（2-4 packs as optional）;
* Easy installing and maintenance ;
* Green and beautiful intergrated photovoltaics for your house .
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
All in one solar storages system cosists of high efficiency mono half cut 144 cells 450-650w solar panels ,Hybrid inverter Blue-S 3680 D or
Blue -S 5000D, CATL 100ah /3.2 v Lithium iron battery pack ,PV mounting bracket, PV cable , AC combiner box etc ,.
The hybrid solar power system working principle as the following :
Product Information

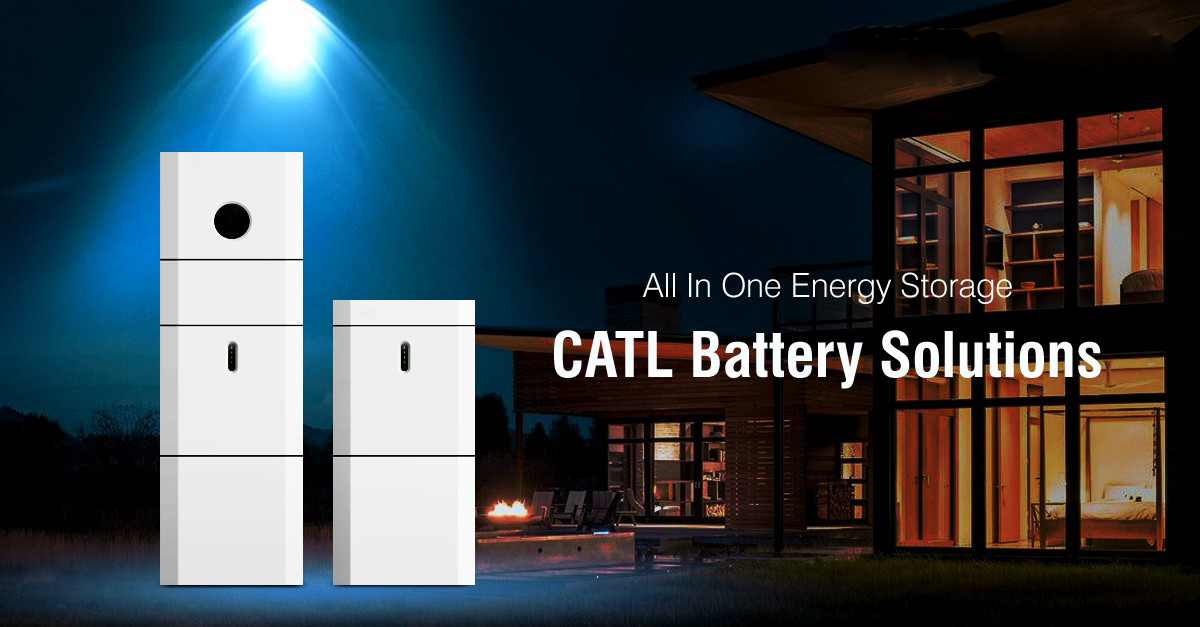

All in One Solar System with Top 1 storage battery brand--CATL
| Capacity | FX-3240 S | FX-4320 S |
| Solar Module | 540w* 6pcs | 540w* 8 pcs |
| Hybrid Inverter Model | Blue-S 3680 | Blue-S 5000D |
| Max DC Voltage | 580V | 580V |
| Normal Voltage | 400V | 400V |
| MPPT Voltage Range | 184-550V | 230-550V |
| Number of MPP tracker | 2 | 2 |
| Max.input Current per MPPT | 15 A | 15 A |
| Max.short -Circuit Currentper MPPT | 18 A | 18 A |
| Normal AC output power | 3680 W | 4999 W |
| Normal AC voltage | 230Vac | 230Vac |
| AC Grid Frequency Range | 50/60 Hz | 50/60Hz |
| Battery Types | LFP (LiFePo4 ) | LFP(LiFePo4 ) |
| Normal Battery Voltage | 51.2 V | 51.2 V |
| Max Charging Voltage | 57.6 V | 57.6 V |
| Battery Capacity | 100-400Ah | 100-400Ah |
| Max PV Efficiency | 97.6 % | 97.6 % |

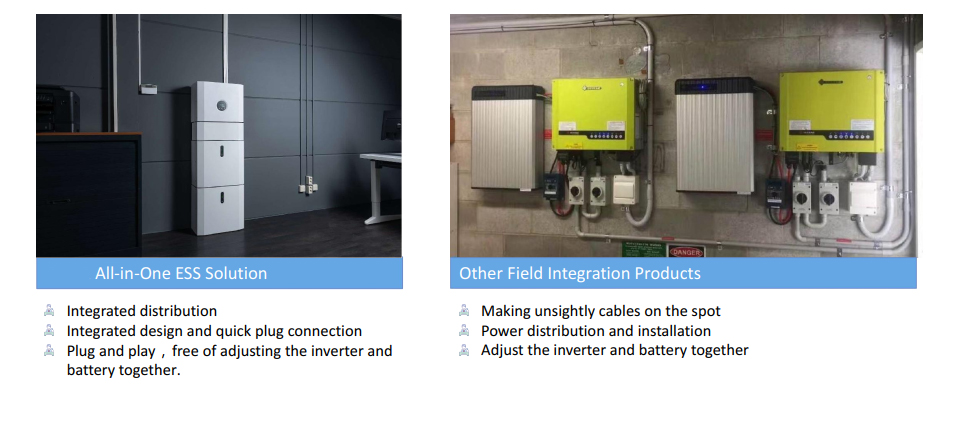

All in one 3KW 5KW Solar Storage System Details

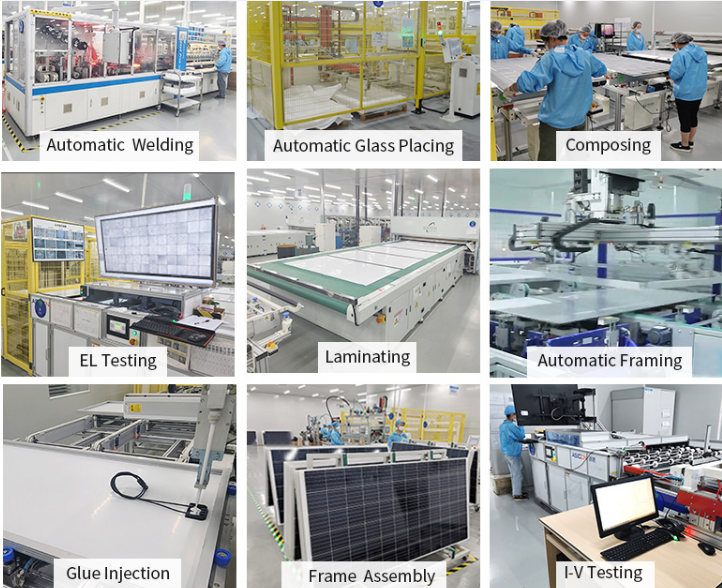

Manufacturing Process
Our Certificate
Project Cases
10KW on grid system in Germany
2MW Commericial Rooftop in Tailand
5KW Solar Storage Project in Poland
20MW Ground Solar Plant in Qinghai
FAQ
1
2
Which payment term you support
L/C and T/T payemnt available .
3
Could you design solar storage power solution for me ?
We have R& D team to design and manufacture solar hybrid system for you .
4
What is the warranty of solar lithium power system ?
Total solar system is 2 Years warranty ,solar panels is12 Years. LiFePo4 battery is 5 Years .
5
What kind of solar Products do you have ?
We have solar PV modules ， Solar led outdoor light， solar home system and relatived solar application products .
